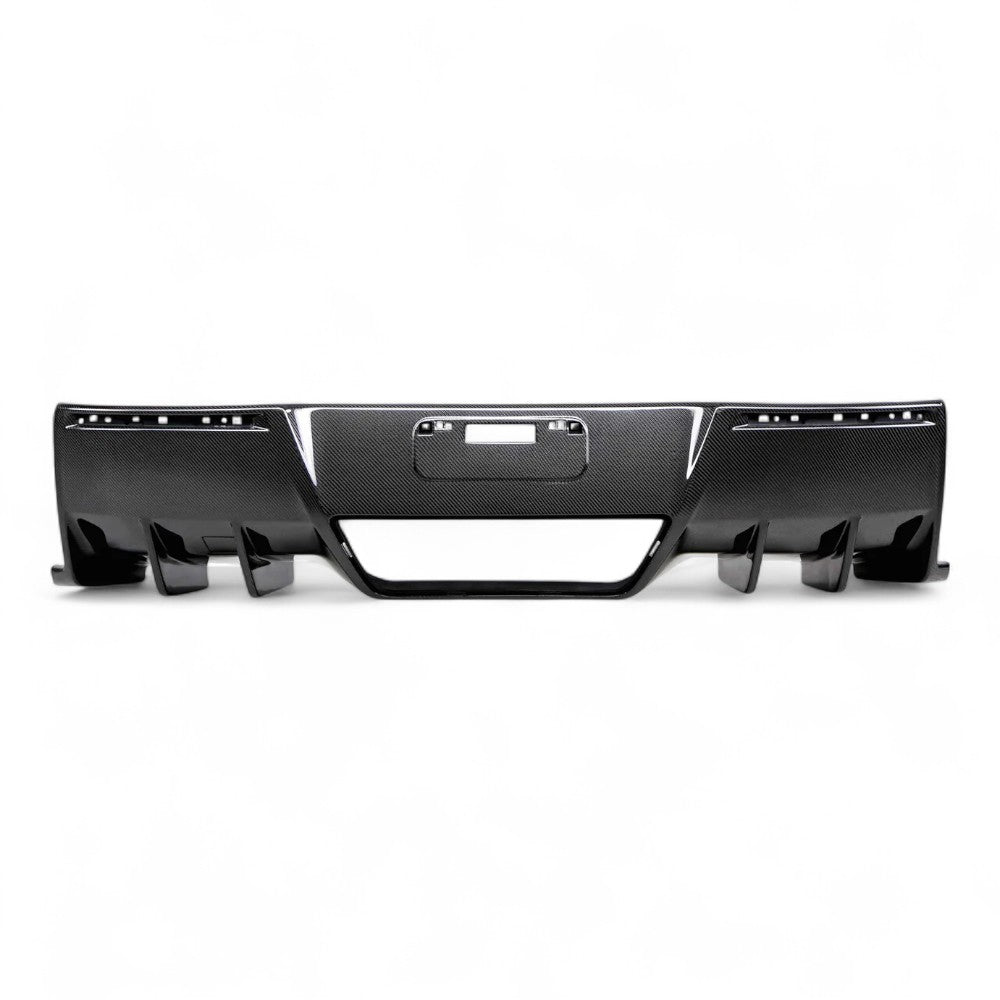

VASL R1-Style Pre-Preg Carbon Fiber Rear Diffuser for 2014–2019 Corvette C7
Transform the rear profile of your Corvette C7 with the VASL R1-Style Pre-Preg Carbon Fiber Rear Diffuser.
Designed for Corvette C7 Stingray, Z06, Grand Sport, and ZR1 models, this one-piece replacement diffuser replaces the factory lower rear valance while adding a deeper, wider, and more aggressive multi-fin appearance.
The diffuser features an integrated center quad-exhaust opening, a defined license-plate mounting area, and multiple vertical fins across the left and right lower sections. Together, these details create a more purposeful rear profile while retaining the recognizable center-exhaust layout of the C7 Corvette.

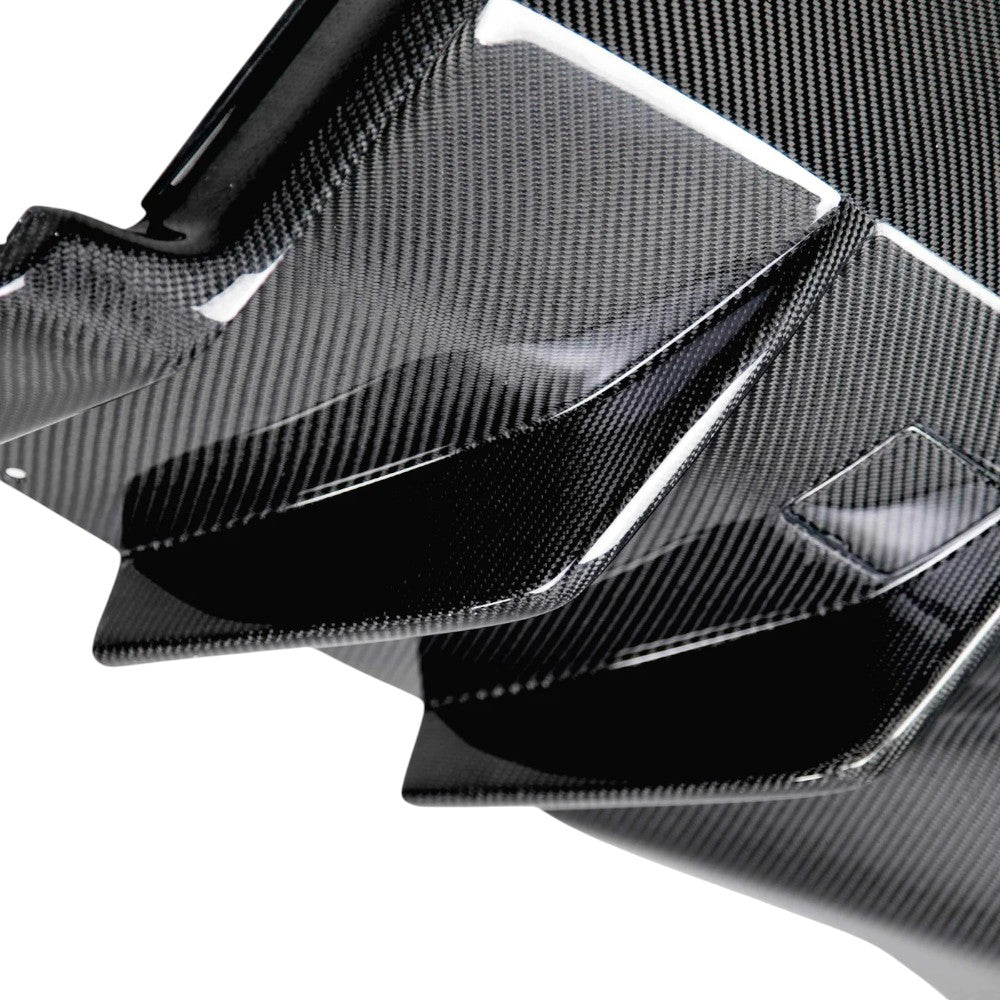

Each diffuser is manufactured from pre-preg 2x2 3K carbon fiber and finished with a gloss UV-resistant clear coat that highlights the depth and consistency of the twill weave.
This product is a complete one-piece replacement rear diffuser and lower rear valance. It is not a tape-on overlay, diffuser-fin add-on kit, or complete rear bumper assembly.
🔥 Key Highlights
✅ Pre-preg 2x2 3K carbon fiber construction
✅ One-piece R1-style replacement design
✅ Replaces the factory lower rear diffuser
✅ Integrated left and right diffuser fins
✅ Factory-style center quad-exhaust opening
✅ Integrated license-plate mounting area
✅ Designed for Corvette C7 Stingray, Z06, Grand Sport, and ZR1
✅ Gloss UV-resistant clear coat
✅ Mounting hardware included
✅ Made to order and inspected before shipment
✅ 90-Day Structural Warranty
✨ What You’ll Notice Immediately
✅ A deeper and more aggressive rear diffuser profile
✅ Multiple vertical fins across the left and right lower sections
✅ A wider visual stance at the rear of the vehicle
✅ Clear 2x2 twill carbon fiber weave
✅ A noticeable upgrade over the factory lower rear valance
✅ Better coordination with carbon fiber side skirts and rear spoilers
✅ Retention of the factory-style center quad-exhaust layout
✅ A complete replacement appearance rather than a small add-on accessory
🧩 Pre-Preg Carbon Fiber Construction
The rear diffuser is manufactured from pre-preg 2x2 3K carbon fiber.
✅ Pre-preg carbon fiber construction
✅ 2x2 3K twill carbon weave
✅ One-piece molded replacement structure
✅ Gloss UV-resistant clear coat
✅ Clear and consistent visible carbon weave
✅ Inspected before shipment for surface finish and mounting readiness
This product uses pre-preg 2x2 3K carbon fiber. It is not described as dry carbon, hand-laid wet carbon, forged carbon, or honeycomb carbon fiber.
🛠 One-Piece Replacement Design
This product replaces the original lower rear diffuser and rear valance section of the Corvette C7.
✅ Complete one-piece replacement design
✅ Integrated left and right diffuser sections
✅ Multiple molded vertical fins
✅ Integrated center exhaust opening
✅ Retains the factory center quad-exhaust layout
✅ Designed around the factory rear-bumper profile
✅ Factory hardware and applicable factory components may need to be reused
✅ Mounting tabs may require modifications and minor fitment adjustments
This product is not:
A tape-on rear diffuser overlay
A set of separate add-on diffuser fins
A three-piece rear diffuser extension
A complete replacement rear bumper
A universal rear diffuser
A carbon-look plastic accessory
📌 Fitment
Compatible with:
✅ 2014–2019 Corvette C7 Stingray
✅ Stingray models with the Z51 Performance Package
✅ Stingray models without the Z51 Performance Package
✅ 2015–2019 Corvette C7 Z06
✅ 2017–2019 Corvette C7 Grand Sport
✅ Corvette C7 ZR1
✅ Coupe models
✅ Convertible models
✅ Vehicles retaining the factory-style center quad-exhaust layout
Before ordering, please also confirm:
✅ Your Corvette model year
✅ Your Corvette C7 model
✅ Your vehicle retains the factory rear-bumper configuration
✅ Your vehicle retains a compatible center-exit exhaust layout
✅ Your factory rear-bumper mounting areas are undamaged
✅ No aftermarket rear bumper or exhaust system will interfere with installation
📦 What’s Included
✅ One one-piece pre-preg carbon fiber VASL R1-style rear diffuser
✅ Mounting hardware
Please note:
Additional clips and hardware may be required to optimize installation for your vehicle.
The following items are not included unless specifically confirmed with your order:
Complete rear bumper
Exhaust system or exhaust tips
Factory rear reflectors or lighting components
License plate
License plate hardware
Replacement factory brackets
Installation tools
Professional installation labor
Factory hardware and applicable factory components may need to be transferred or reused during installation.
🔧 Installation Details
✅ Complete replacement installation
✅ Factory lower rear diffuser removal required
✅ Remove the rear bumper for best installation results
✅ Complete test fitting required before final installation
✅ Factory hardware and applicable factory components may need to be reused
✅ Mounting tabs may require modifications for correct fitment
✅ Minor adjustments may be necessary as part of the normal installation process
✅ Additional clips and hardware may be required
✅ Exhaust and body-panel clearance must be checked
✅ Professional installation is strongly recommended
Recommended installation process:
1. Park the vehicle on a level surface and allow the exhaust system to cool completely.
2. Safely raise and support the rear of the vehicle where required.
3. Remove the factory lower rear diffuser and rear bumper for proper access and alignment.
4. Disconnect or remove any factory components that must be transferred to the replacement diffuser.
5. Inspect all factory mounting points, brackets, clips, and hardware.
6. Position the VASL R1-style carbon fiber diffuser against the rear bumper and complete a full test fit.
7. Confirm alignment around the exhaust opening, outer bumper edges, license-plate area, and upper mounting locations.
8. Transfer and reuse factory hardware or components where required. Obtain additional clips or hardware if necessary.
9. Assess any mounting-tab modifications or minor adjustments only after full test fitting has been completed.
10. Install the mounting hardware without fully tightening each mounting point.
11. Recheck left-to-right alignment, panel gaps, exhaust clearance, and bumper clearance.
12. Tighten all mounting points evenly after the diffuser is correctly positioned.
13. Reinstall the rear bumper and confirm that all factory components function correctly.
Important:
⚠ Do not drill, cut, trim, or modify the product before completing a full test fit
⚠ Do not force mounting tabs into misaligned factory locations
⚠ Do not fully tighten one side before confirming the alignment of the opposite side
⚠ Over-tightening mounting hardware may damage the carbon fiber
⚠ Aftermarket exhaust systems may change the available exhaust-tip clearance
⚠ Existing rear-bumper damage or previous modifications may affect fitment
⚠ Confirm that the diffuser does not contact the exhaust system
⚠ Recheck all mounting points after the initial installation and first period of driving
Professional installation by a body shop experienced with aftermarket carbon fiber components is strongly recommended.
📦 Production Note
✅ This is a made-to-order pre-preg carbon fiber product
✅ Estimated production lead time is around 15 business days before shipment
✅ Each diffuser is inspected before shipment for surface finish and mounting readiness
✅ Production time and shipping time are calculated separately
✅ Minor variations in carbon weave positioning are normal characteristics of genuine carbon fiber products
🏁 Why Choose VASL Precision Series
✅ Pre-preg 2x2 3K carbon fiber construction
✅ Complete one-piece rear diffuser replacement
✅ Aggressive R1-style multi-fin design
✅ Designed for Corvette C7 Stingray, Z06, Grand Sport, and ZR1
✅ Factory-style center quad-exhaust opening
✅ Gloss carbon fiber finish
✅ Mounting hardware included
✅ Designed to coordinate with matching VASL C7 carbon fiber components
✅ Backed by a 90-Day Structural Warranty
